Case Study: Mirror Cover, Base and Middle



Process: Metal injection molding

Material: MIM-316L stainless steel

Density: 7.65 g/cm³

Tensile Strength: 480 MPa

Hardness: 100 HRB max

Yield Strength: 150 MPa

Download the PDF



End Use and Function

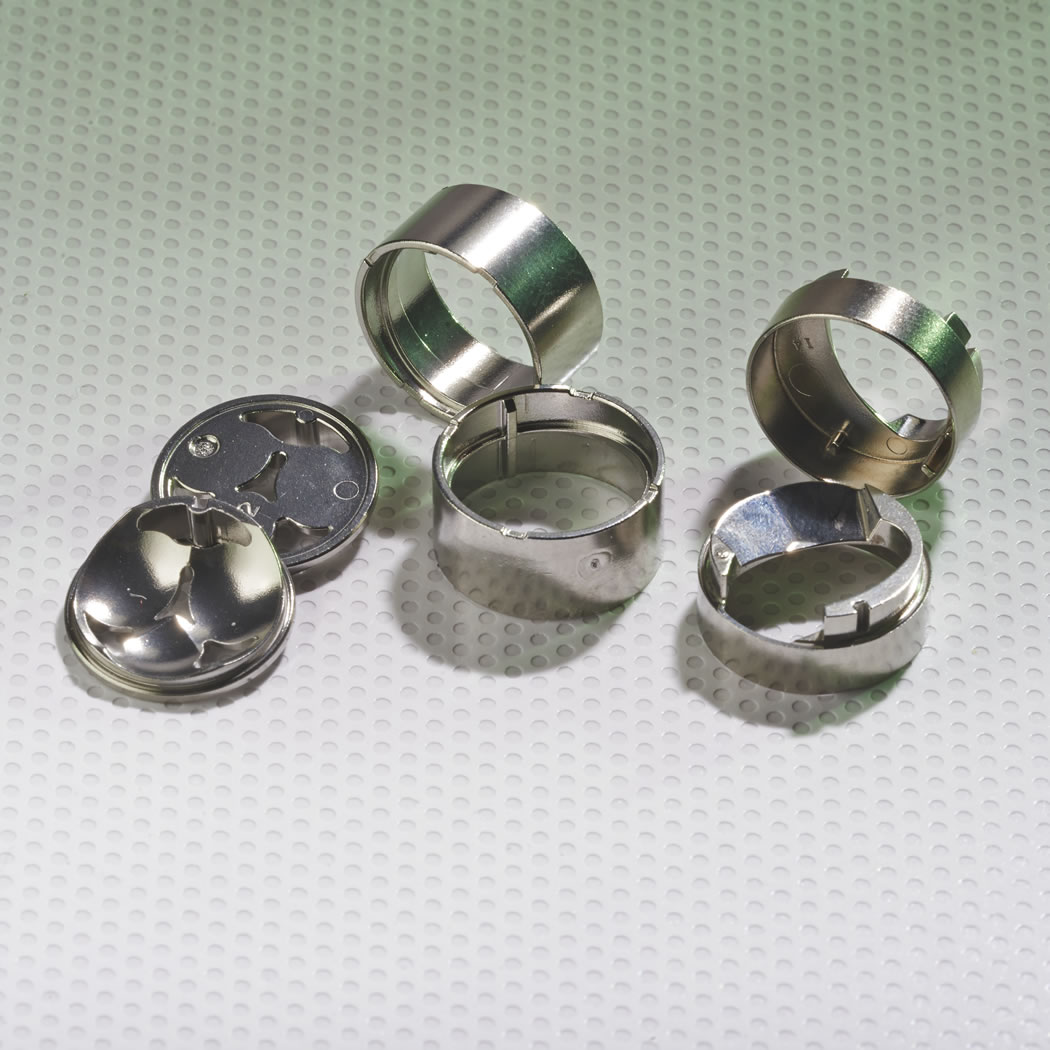

The award was given for three parts—a mirror cover, a base, and a middle— that assembled into an infrared gas sensor for methane and carbon dioxide detection that has extremely low power consumption.

A 2016 Award of Distinction Winner in the Electronic/Electrical category



Fabrication

Molded from MIM-316L stainless steel, this new application is designed specifically for the metal injection molding (MIM) process. All parts are four cavity tools with complex matchings. These are medium-complexity parts that have an esthetic requirement on a few reflective surfaces. The part density is 7.65 g/cm³, ultimate tensile strength 480 MPa, elongation 45%, yield strength 150 MPa, and hardness of 100 HRB max.

Results

  • While possible to create this part using a different process, the holes, ribs, pips, and thickness would be difficult to efficiently reproduce.
  • Using MIM to create this part resulted in an estimated cost savings of 20%.
