Fabrication

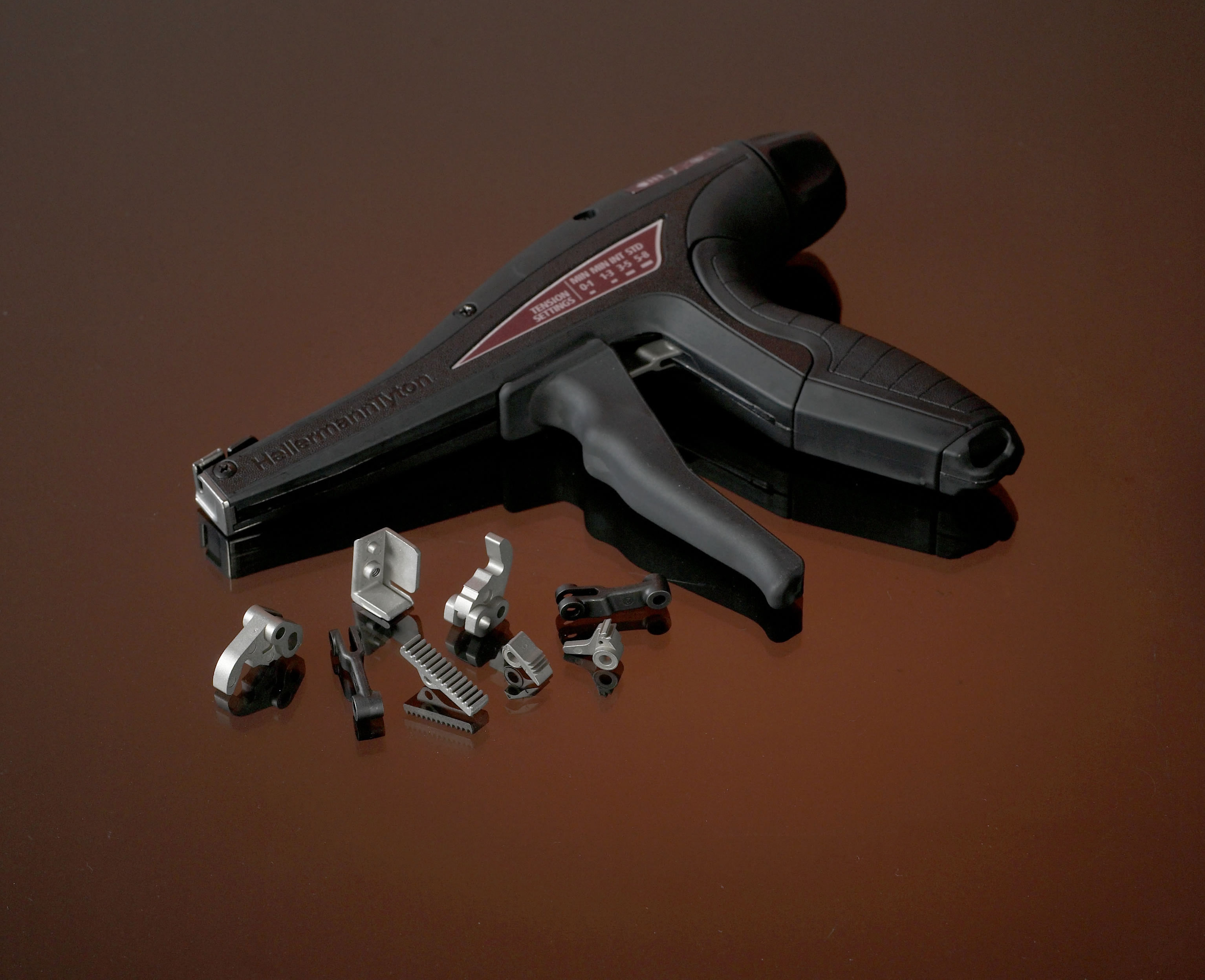

Made to a density of 7.6 g/cm³, the 17-4 PH stainless steel components are produced to net shape with only four components requiring minor secondary operations such as reaming and coining. The pawl gripper, pinion, and short link are reamed to ensure a tight tolerance hole diameter. The pinion and insertable rack have tightly tolerance gear teeth, while the cutoff cam design includes several tightly tolerance profile dimensions that allowed zero draft.

Results

This part was originally made with investment casting. Upfront design collaboration between customer and manufacturer were critical for part production. Collaboration resulted in:

• An overall reduction in cost and an increase in manufacturability
• Simplified shape complexity resulting in reduced weight
• Enhanced moldability
• Improved durability
